Automobile Stamping Tools

Essential to automotive sheet metal fabrication. KETEC specializes in automative punches, dies, and retainers. Using automated production lines and refined grinding processes, we ensure consistent quality and high standardization. Our tools are made from premium materials like SKD-11, D2, SKH-51, M2, and powdered high-speed steel, meeting strict specifications for superior performance.

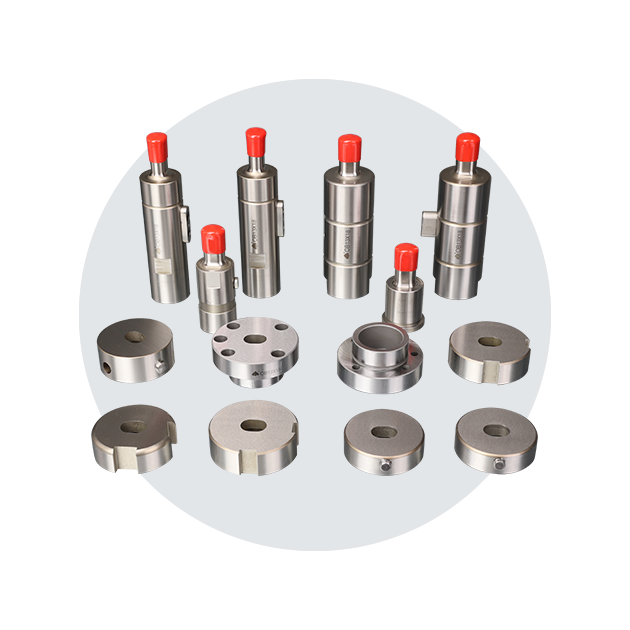

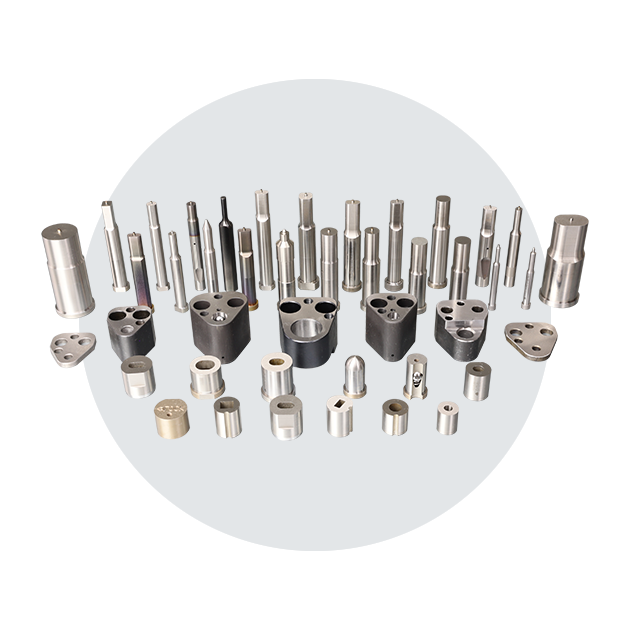

Ketec Automotive stamping tool overview Line Overview

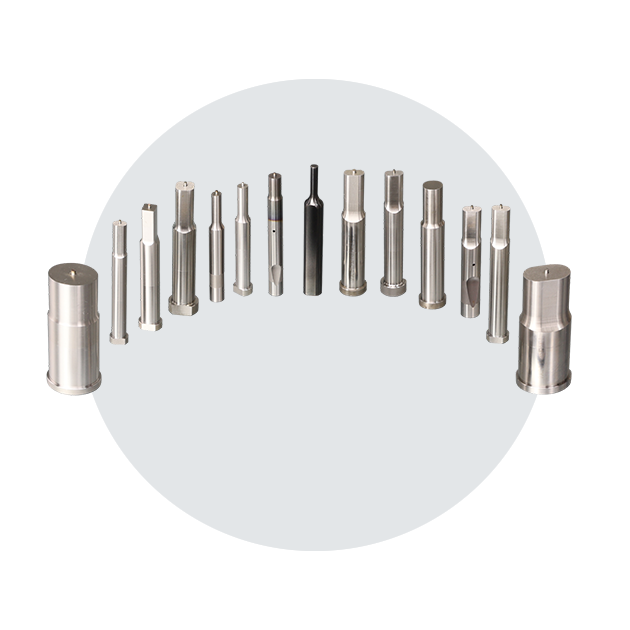

ketec Automobile Stamping Tools punch Punches
Ketec's Automobile Stamping Ball Lock Punch Retainers Ball Lock Punch Retainers

Key Advantages

1

Fully compatible with:

MISUMI®, PUNCH®, DAYTON® & MOELLER® HOSTON® Standard.
2

Uses HSS (M2), PM-Grade Steel (M4) SKD-11, D2, SKH-51, and powdered high-speed steel materials.

3

Consistent high-quality products ensured by automated standardized processing lines.

4

Extended tool life through in-house heat treatment and coating techniques.

5

TiCN & other coating available upon request for additional protection.

6

Minimal defects are ensured by rigorous testing at every stage before completion.

Thick Plate Toolings

The thick plate tooling is used for processing ultra-thick plates, with thickness ranging from 6mm (0.24") to 12mm (0.47"). KETEC uses high-performance LD material with excellent wear resistance and toughness. Our in-house heat treatment process enhances material performance, while our exclusive TiCN coating further extends the die's lifespan for demanding applications.

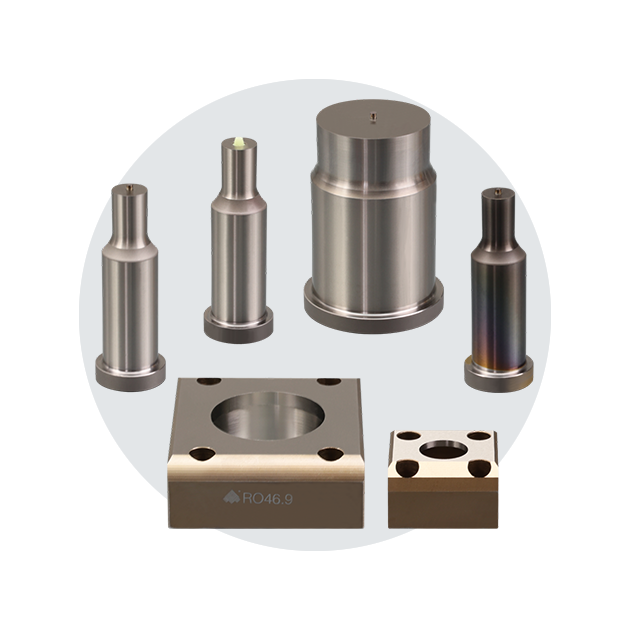

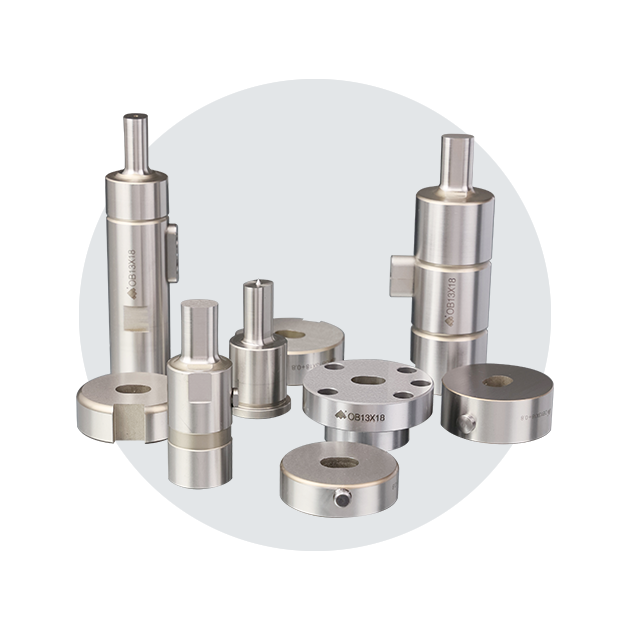

Ketec's Thick Plate Tooling Overview Overview

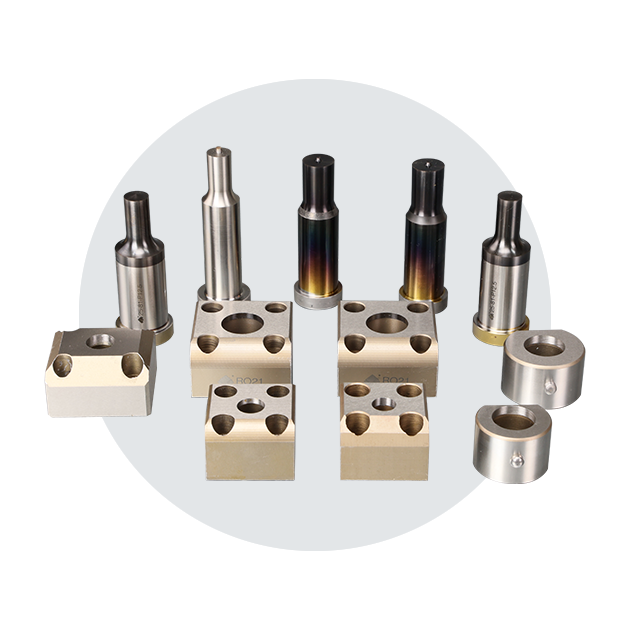

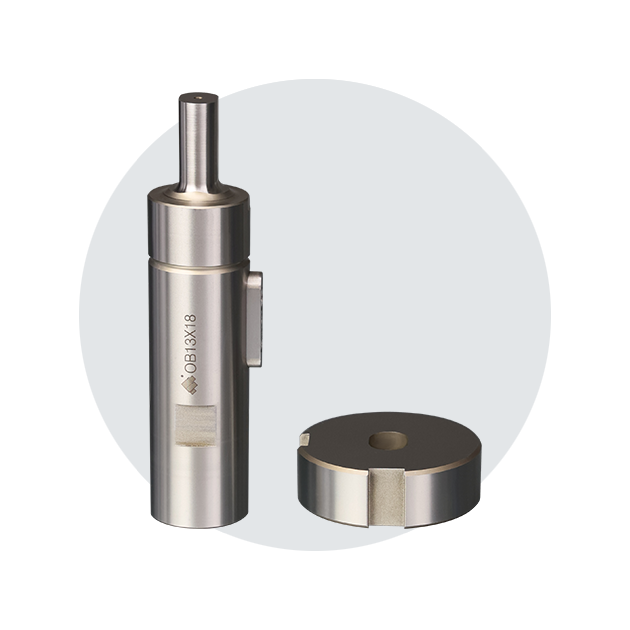

Ketec's Punches & Dies Stamping Punches & Dies

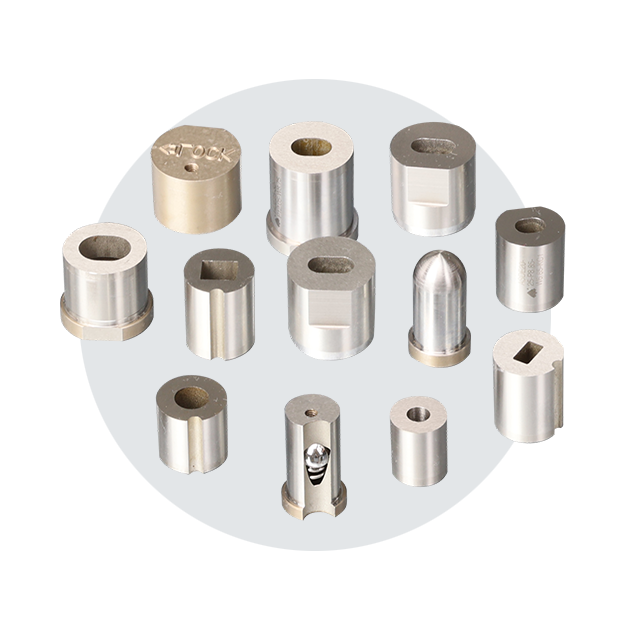

Ketec's Punches & Dies Thick Plate Tooling Punches & Dies

Key Advantages

1

Fully compatible with:

MISUMI®, PUNCH®, DAYTON® &  MOELLER® HOSTON® Standard.
2

Uses LD material known for excellent wear resistance and toughness.

3

Consistent high-quality products ensured by automated standardized processing lines.

4

Extended tool life through in-house heat treatment and coating techniques.

5

TiCN & other coating available upon request for additional protection.

6

Minimal defects are ensured by rigorous testing at every stage before completion.

T85 & E85 Series comparison Chart

Adjusting time Grind Life A/B STN Guide  A-E STN Punch Price
T85 •• 5 - 8 mm Interchangeable •••
E85 ••••• 2 - 3 mm Interchangeable ••

Copper Busbar Punching Tool

The primary challenge in copper plate stamping is the material’s adhesion to the punch. KETEC addresses this by using a precision polishing process to enhance the punch's surface finish, paired with DLC (Diamond-Like Carbon) coating technology. This combination achieves a cutting edge surface roughness of less than Ra 0.4, effectively minimizing copper adhesion to the punch edge and significantly extending the tool life.

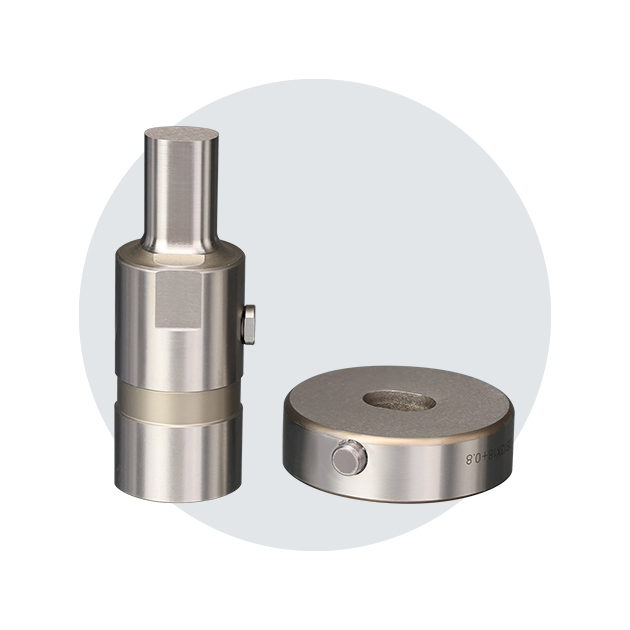

Copper Busbar Punching Tool-1 A+B Station T85 whole set

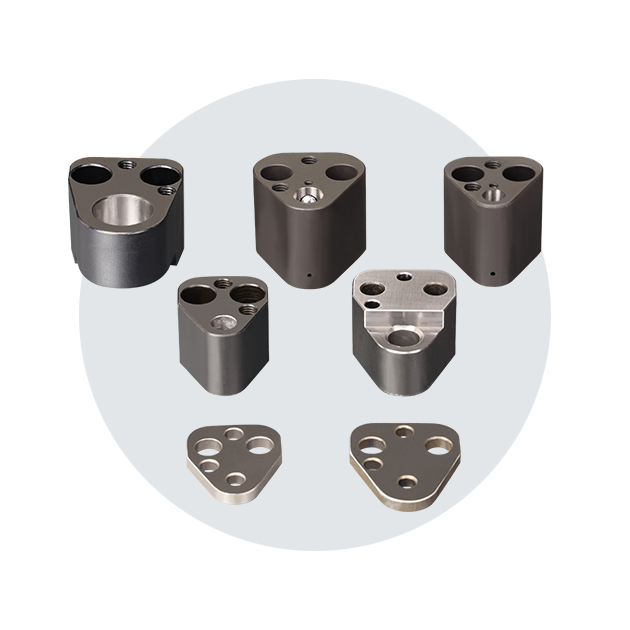

Copper Busbar Punching Tool-2 A+B Station T85 whole set

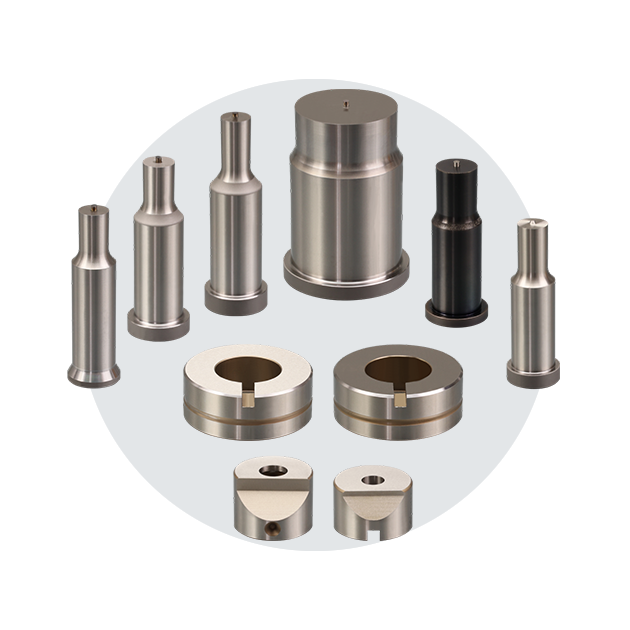

Copper Busbar Punching Tool-3 A+B Station T85 whole set

Key Advantages

1

Fully compatible with:

MISUMI®, PUNCH®, DAYTON® & MOELLER® HOSTON® Standard.1
2

Combines with DLC coating to achieve a cutting-edge roughness of less than Ra 0.4.

3

Employs advanced polishing techniques to minimize copper adherence.

4

TiCN coating is available upon request for additional protection.

5

Extended tool life through in-house heat treatment and coating techniques.

6

Minimal defects are ensured by rigorous testing at every stage before completion.

KETEC’s Stamping Tools Catalogue

Download Full Catalogue
Ketec Stamping tool catalog cover
