TOP 90 is one of Ketec’s best-selling product lines, prized for its ease of use, reliability, and popularity.
Our T90 series can be equipped with ABS(standard) and is compatible with Wilson's 90™ and HP™ Series and Mate's MXC™ Series. All categories are available in stations A, B, C, D, and E, offering full interchangeability with other mainstream tooling manufacturers.
Top 90 Highlights
Ketec’s T85 series stands out as one of our top-selling products, offering enhanced versatilty and durability compared to the E85 series

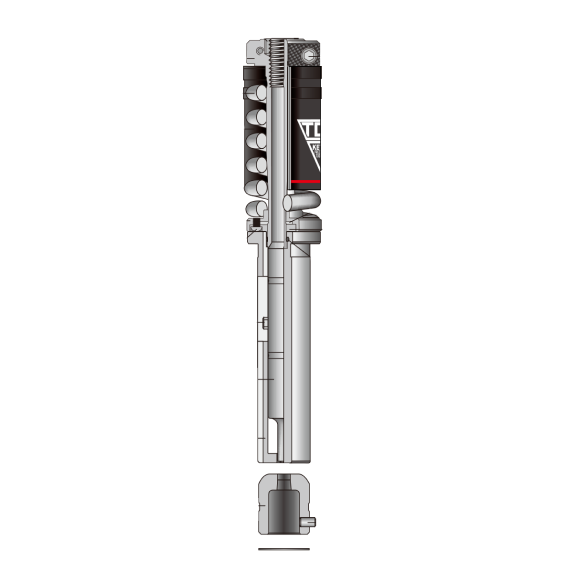

A+B Station T85 whole set
A+B Station T85 whole set
A+B Station T85 whole set
A+B Station T85 whole set
A+B Station T85 whole set
Key Advantages of T90 Tools
1
Full interchangeability with major OEMs such as Amada and others
2
Tool-free length adjustment is achieved by rotating the punch body clockwise or counterclockwise and locked in place with the retaining ring and index pin.
3
Max grind life for A & B station is 6.3mm. For C/D/E station is 5-8mm.
4
Using HRC 63 High-Speed Steel for exceptional durability in high-stress environments.
5
Guides treated with Nitriding process to enhance compressive, wear, and corrosion resistance.
6
TiCN coating available upon request for additional protection.
7
C/D/E station comes in 3 standard guiding pin angles of 0, 90, and 225º.
8
Rooftop Shear is available upon request.
9
Other Variations:
ABS, Heavy Duty, Slitting
10
Tool-free length adjustment is achieved by rotating the punch body clockwise or counterclockwise and locked in place with the retaining ring and index pin.
T90 Highlights
TOP 90 is one of Ketec’s best-selling product lines, prized for its ease of use, reliability, and popularity.

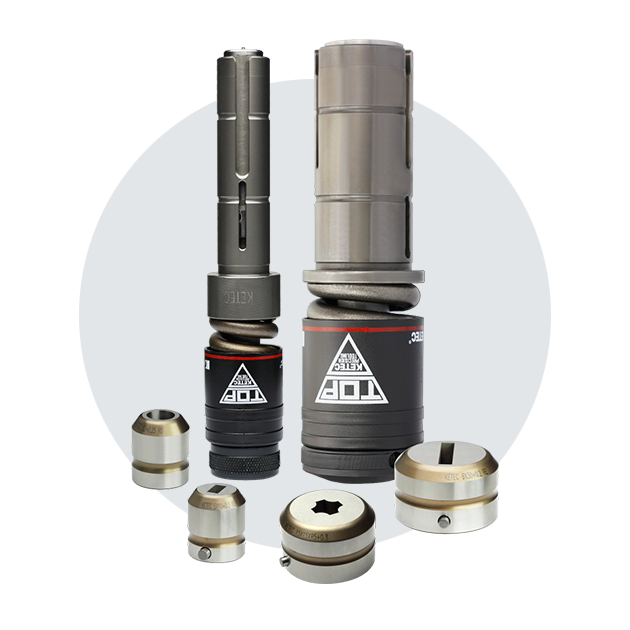

T90 A/B Stations

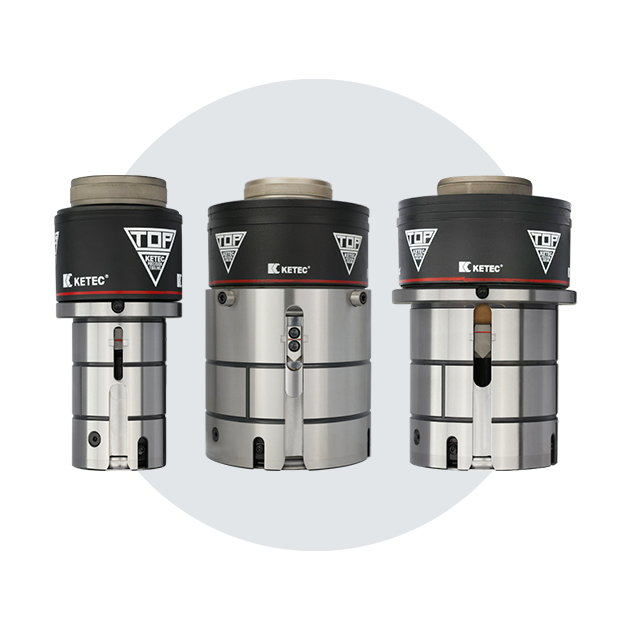

T90 A/B/C Stations

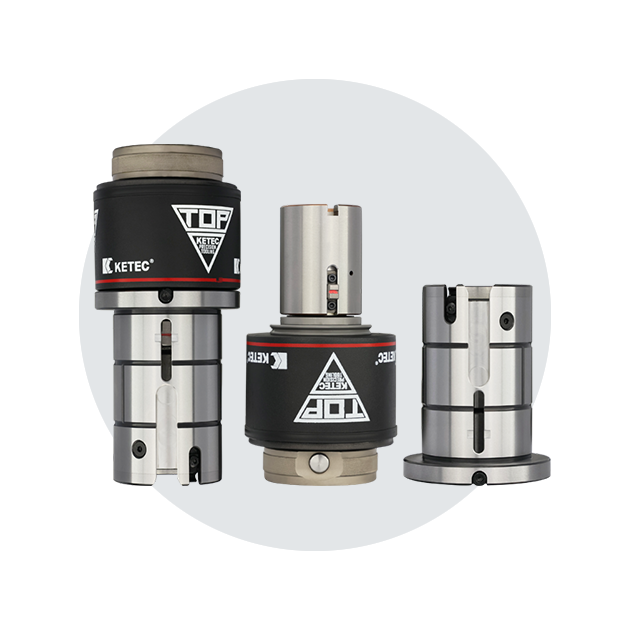

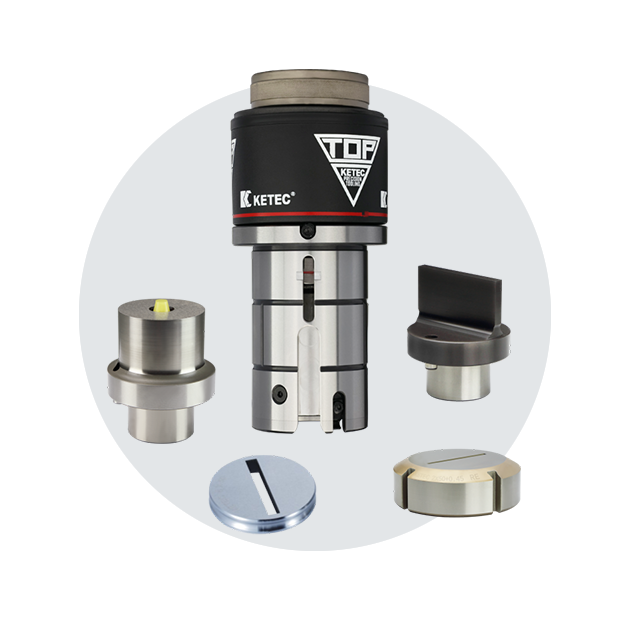

T90 C Station Open Guide/Slitting

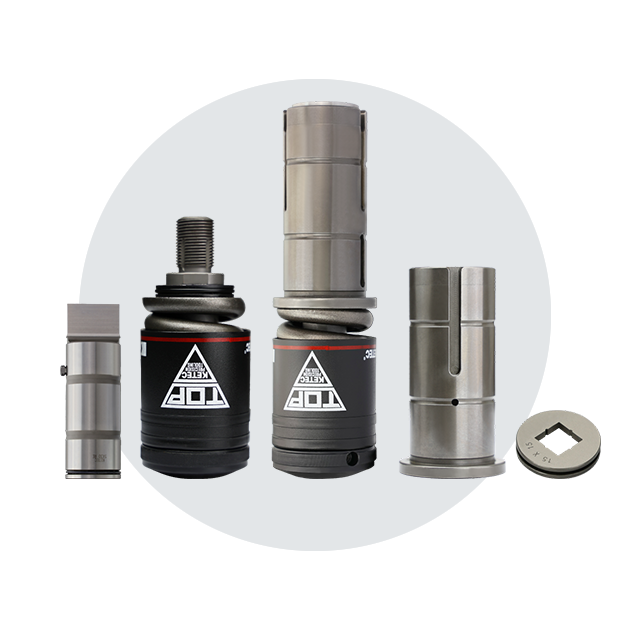

T90 B Station Disassembled
T90 C Station Disassembled

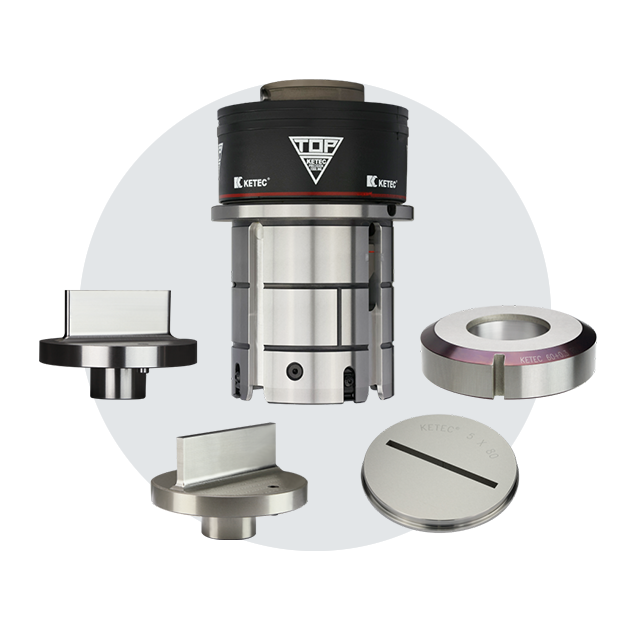

T90 D Station Open Guide/Slitting

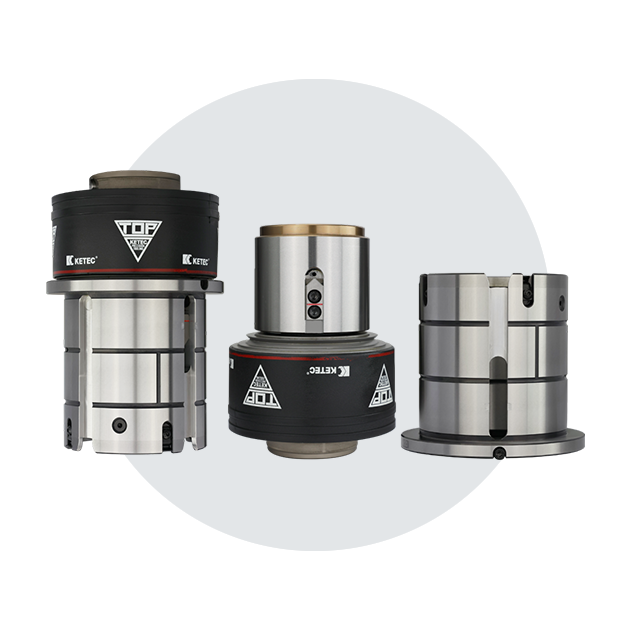

T90 D Station Disassembled

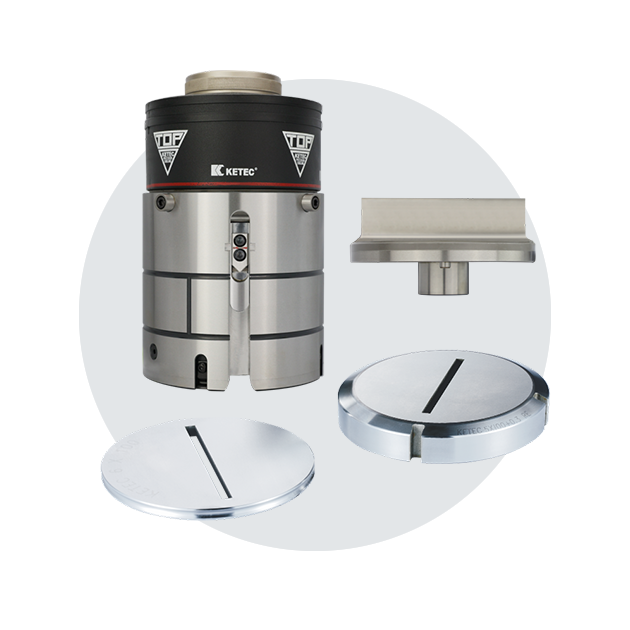

T90 E Station Open Guide/Slitting

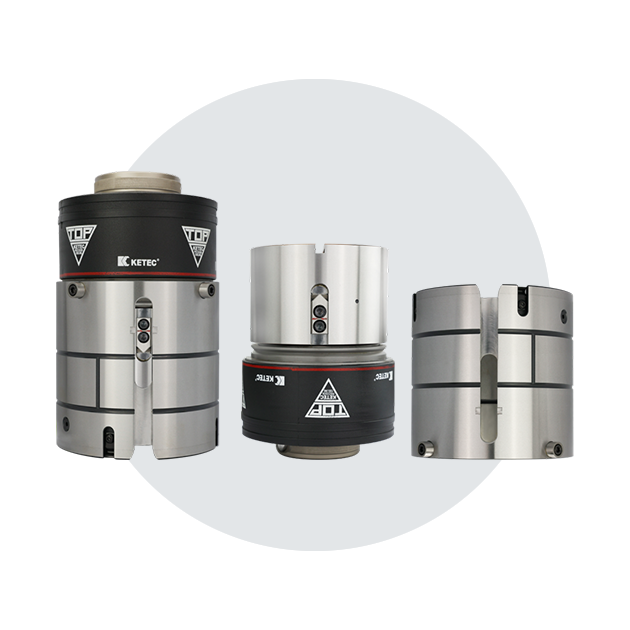

T90 E Station Disassembled
Key Advantages of T90 Tools
1
Full interchangeability with OEMs such as Amada and others
2
Tool-free length adjustment is achieved by rotating the punch body clockwise or counterclockwise and locked in place with the retaining ring and index pin.
3
Using HRC 63 High-Speed Steel for exceptional durability in high-stress environments.
4
Nitriding treatment applied to guides for enhanced resistance to compression, wear, and corrosion.
5
TiCN coating available upon request for additional protection.
6
C/D/E station comes in 3 standard guiding pin angles of 0, 90, and 225º.
